BAR4      Isolation Barrier

PRODUCT OVERVIEW

The BAR4 is m-tronix’s next-generation 1100 V isolation barrier, engineered to provide safe galvanic isolation between high voltage circuits and low-voltage detection or protection equipment.

It delivers full compliance with relevant statutory and industry standards, while introducing a more compact form factor,  simpler installation, and lower build and wiring costs compared with earlier barrier designs.

Designed as the recommended isolation interface for the GFL3 Earth Leakage Lockout Frozen Contactor Relay, the BAR4  brings modernised performance into a smaller, installer-friendly package.

APPLICATION

The BAR4 is intended to isolate high voltage from connected electronic protection devices in mining and industrial systems,  including:

• Earth leakage lockout systems

• Frozen contactor detection

• Control and protection relays requiring HV isolation

• Underground and surface distribution systems

• Conveyor, pump and motor starter circuits

Its compact DIN-rail housing makes it ideal for modern switchgear, OEM equipment, and retrofits where space efficiency is  critical.

FEATURES

• Fully compliant with all relevant statutory and industry standards

• Compact, lightweight design — smaller footprint than BAR3

• DIN-rail mount for rapid, simplified installation

• Lower wiring effort and reduced build cost

• Three-phase high-voltage isolation

• Designed specifically for use with ELLFC3 protection systems

• High dielectric strength for operator and equipment safety

• Proven mining-grade reliability

SPECIFICATIONS

Electrical

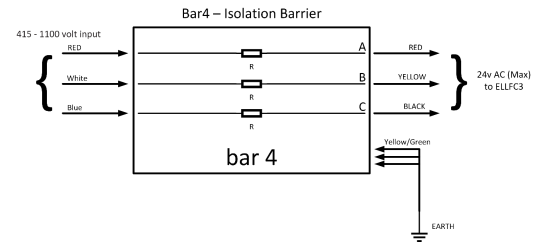

• 415–1100 V AC input

• 24 V AC output (maximum)

• DIN-rail mount

ENCLOSURE

ORDERING INFORMATION

COMPLIANCE

• AS 2081:2011 (relevant live-line indication requirements)

• For mining and industrial electrical protection systems

• Manufactured to applicable AS/NZS and IEC standards

• ANZEx 11.3014X

─────────────────────────────────────────

m-tronix Pty Ltd

info@m-tronix.com.au | +61 435 939 513 | www.m-tronix.com.au
