LLm Live Line Indicator Module

PRODUCT OVERVIEW

Clear, reliable live-line monitoring to help keep your team safe.

PRODUCT OVERVIEW

The LLM Live Line Monitor provides remote, high-visibility indication of 3-phase AC load circuits. Designed for mining and  industrial switchgear, the LLM gives operators clear confirmation of energised or isolated status — reducing risk during  switching and lockout procedures.

The LLM builds on decades of Bramco technology, continuously engineered and supported by the Leishman family and m tronix.

Fully compliant with AS 2081:2011 for live-line indication in mining applications.

APPLICATION

The m-tronix LLM is intended for:

• Underground and surface switchgear

• Longwall, conveyor and pump starters

• OEM enclosures

• MCC panels

• Fixed plant

• Any installation requiring remote live-line indication at the operator door

Typical use: provide clear door-mounted LED status via the LLM Remote Display.

FEATURES

General

• Compact low-power 3-phase monitor

• DIN-rail or screw-mount module

• High-visibility dual LED indicators for each phase • ELV-powered remote display for front-panel safety • Robust mining-grade design

Normal Operation

• No AC present: all LEDs OFF

• AC present: LEDs ON for all energised phases

• If any LED is ON → circuit is LIVE

Fault Indication

• LEDs ON when circuit should be isolated

→ Indicates welded contactor, leakage, or isolation failure LED Indicators

• Phase A (U) — dual LEDs

• Phase B (V) — dual LEDs

• Phase C (W) — dual LEDs

4. SPECIFICATIONS

Supply Voltage Options

• 375–635 V AC

• 660–1100 V AC

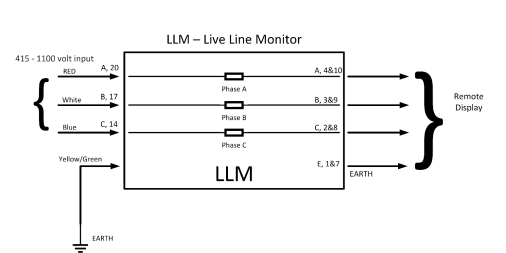

Connections

• A, B, C phases

• Earth

• Terminals for Remote Display

Display Module

• Door-mounted LLD remote display

• Extra-low-voltage signalling for operator safety Power Consumption

• < 2 VA typical

Environmental

• Operating Temperature: 0–60°C

• Humidity: 0–95% non-condensing

Enclosure

Material: High-impact polycarbonate

Mounting: DIN-rail or screw mount

Terminals: Cage screw

ORDERING INFORMATION

Part Number Description

A00971 LLM Module — 660–1100 V AC

A01247 LLM Module — 375–635 V AC

A00739 LLM Remote Display

COMPLIANCE

• AS 2081:2011 (relevant live-line indication requirements)

• Designed for use in mining and industrial electrical protection systems

• Manufactured to applicable AS/NZS and IEC standards

─────────────────────────────────────────

m-tronix Pty Ltd

info@m-tronix.com.au | +61 435 939 513 | www.m-tronix.com.au
