iD Pilot Protection Relay

PRODUCT OVERVIEW

The iD Earth Continuity Relay forms part of the legacy-generation Bramco product range, originally developed through the  late 1990s by Gil Leishman and his engineering team, and now supported exclusively by m-tronix.

m-tronix remains the authorised and exclusive custodian and distributor of these Bramco technologies, continuing more  than four decades of design evolution, innovation, and field-proven reliability.

The iD relay provides robust earth-continuity monitoring using diode-terminated pilot circuits and supports remote start/stop  functionality for mining and industrial supply cables.

APPLICATION

Leaders in innovative protection systems, the Bramco/m-tronix iD is compliant with relevant statutory and industry standards. The iD relay has been engineered to:

• Monitor continuity of the earth circuit in a supply cable

• Detect faults via pilot-core grounding through a polarised diode (positive to earth)

• Enable remote start/stop via momentary shorting of a 100 Ω resistor in the pilot circuit (start) • Open the pilot circuit via stop-button operation (stop)

Typical applications:

• Mining starters (pump, conveyor, crusher, longwall systems)

• Underground and surface electrical distribution

• OEM switchboard integration

• Any installation requiring diode-terminated pilot wire earth monitoring

FEATURES

• Remote start/stop operation via pilot wire

• Detection of pilot wire shorted to earth

• LED indication of power on

• LED healthy indication when earth continuity resistance is below 45 Ω • Higher (non-approved) maximum resistance ranges available by special order • Legacy Bramco engineering — still fully supported by m-tronix

SPECIFICATIONS

Supply:

• 110 V AC 50/60 Hz standard

• 240 V AC 50/60 Hz optional

• 24 V AC or DC 50/60 Hz optional

• 48 V DC 50/60 Hz optional

Power: 3 VA ±20%

Operating Temp: 0–60°C

Pilot to Earth Resistance:

0–145 Ω. 100 Ω start resistance drop.

Pilot Wire:

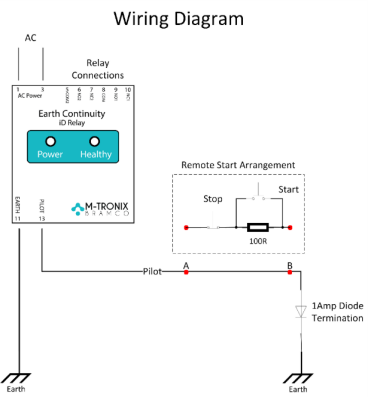

Diode termination to earth at remote end of cable and 100 Ω for Start/Stop circuit. Relay Contacts:

2 × Changeover contacts

5 A – 240 V AC

ORDERING INFORMATION

Part Number Description

A0251 iD Earth Continuity Relay

Enclosure

Dimensions: 75 mm (W) × 55 mm (H) × 110 mm (D)

Material:

• High-impact resistant polycarbonate construction

• IP20 rating

Mounting: DIN rail

Terminals: Cage screw terminals

Weight: 216 g

Certification

This product is designed and manufactured in accordance with ISO9001:2000 certified company standards. It is compliant with AS2081:2011.

─────────────────────────────────────────

m-tronix Pty Ltd

info@m-tronix.com.au | +61 435 939 513 | www.m-tronix.com.au
