PCX Pump Control Module with Remote Operation PRODUCT OVERVIEW

The PCX Pump Control Module is an advanced controller for submersible pumps, delivering intelligent automation, full  remote stop/start control, and superior operator safety. Designed for demanding environments like mining, construction,  and industrial dewatering, it prevents pump damage, reduces maintenance costs, and ensures personnel are protected — all without opening the panel.

With no live electrical work required, the PCX offers remote configuration and control, including safe start/stop, real time current monitoring, and automated dry-run protection through intelligent "snore" detection.

Key targets

• Start/Stop the pump safely via remote unit — no panel opening required

• Eliminates arc flash hazard — fully compliant with modern safety standards

• Restart Program Button resets pump curve timing and immediately re-engages pump

• Adaptive dry-run (snore) detection adjusts run/pause cycles in real time

• Live current bar graph and LED indicators on remote for at-a-glance diagnostics

Operating Modes

• Manual Mode

Disables automatic pump cycles. Pump can be restarted via the remote control unit.

• Automatic Mode

Autonomous control based on float switch inputs and real-time current-based dry-run protection logic. Advanced Pump Control Logic

• Long run times → shorter pauses

• Short run times → longer pauses

Combined with snooze (snore) detection, the PCX ensures the pump only runs when fluid is present, extending motor and  impeller life significantly.

Remote Control Unit – Stop/Start & Setup Safety

The PCX is supplied with a panel-mounted remote control unit, allowing operators to:

• Start/Stop the pump

• View live pump current

• Adjust snooze threshold

• Restart pump timing program

This eliminates the need for electricians to open the enclosure or perform configuration while the panel is live — removing  arc flash risk and saving setup time.

Remote Unit Functions

1. Power LED – Indicates active system power

2. Run LED – Pump is currently running

3. Pump Current LED – Normal operating current detected

4. Snooze Current Adjustment – Set snooze threshold for dry-run detection

5. Current Bar Graph LED – Shows % of selected current range in real-time

6. Restart Program Button – Resets run/pause algorithm and starts pump

7. Start/Stop Buttons – Full remote operational control

Remote Unit Enclosure:

• Dimensions: 96 mm (W) × 48 mm (H) × 103 mm (D)

• Cutout: 84 mm × 37 mm

• Enclosure: NGS-9410 panel mount

Key Features Summary

Pump Protection & Adaptive Control

• Intelligent dry-run ("snore") detection using current analysis

• Real-time adaptive run/pause timing for optimal wear reduction

• Supports float switch input for high/low level cut-in/out

Safe Remote Control & Setup

• Stop/Start control outside of panel — no contact with live wiring

• Restart program button on remote unit

• No need to open enclosure for setup, reducing safety risk and downtime

Monitoring & Outputs

• Real-time LED current bar graph (% of selected range)

• LED status: Power, Run, Pause, Alarm, Pump Current

• 4–20 mA analog output for motor current telemetry

• Output relays for Run and Alarm

Technical Specifications

Power Supply

Motor Current Ranges (Selectable)

• Range 0: 1–5 A

• Range 1: 5–25 A

• Range 2: 25–100 A

• Range 3: 100–200 A

• CT Ratio: 200:1 (CT included)

Relay Outputs

• 5 A @ 250 V AC (General)

• 5 A @ 30 V DC (Resistive)

• 100 VA max

Analog Output

• 4–20 mA output for current monitoring (into 2500 Ω)

Operating Temperature

• -10°C to 60°C

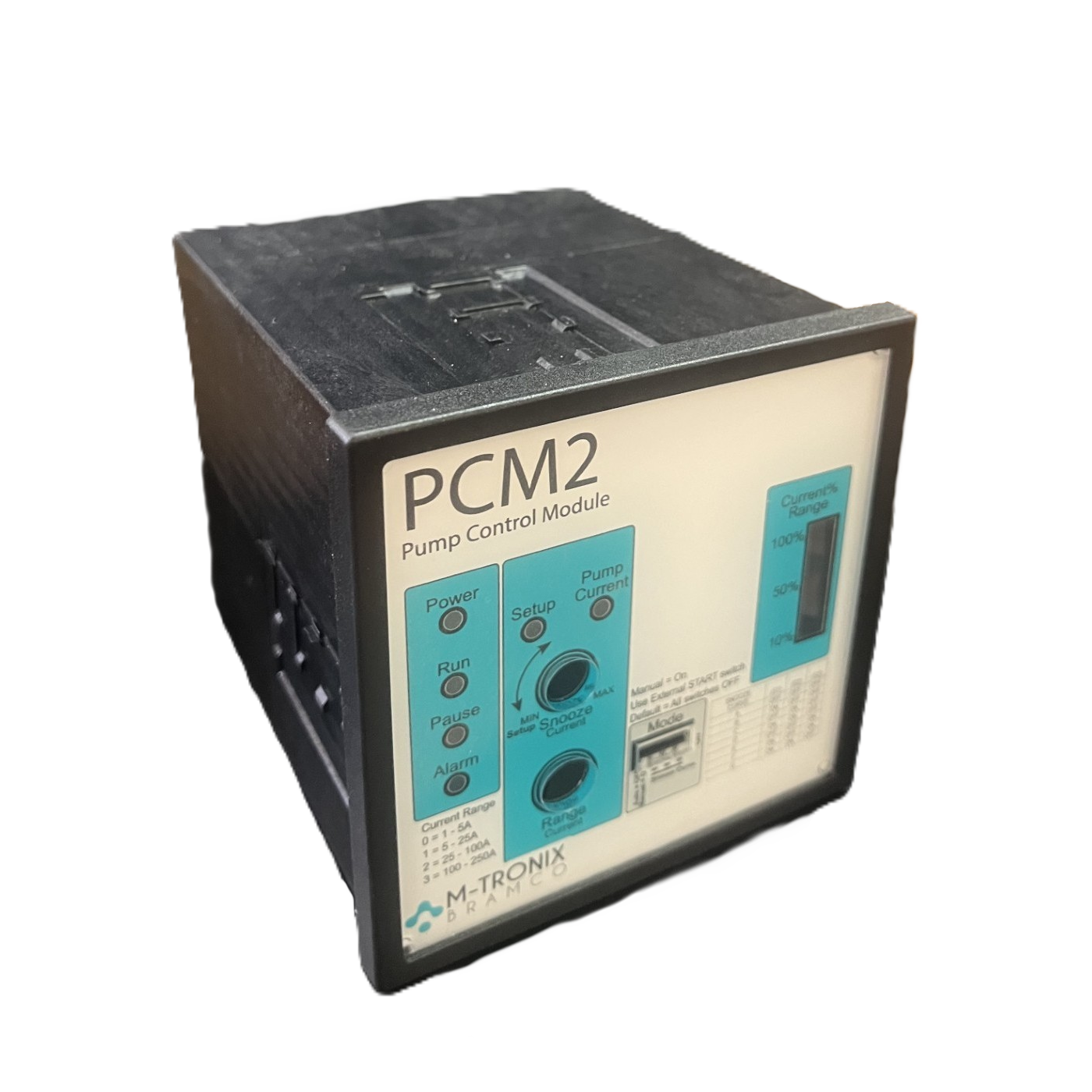

Mechanical Specifications

Main Controller

• Dimensions: 95 mm (W) × 95 mm (H) × 105 mm (D)

• Material: High-impact polycarbonate

• IP Rating: IP20

• Mounting: DIN rail or fascia

• Weight: 365 g

Remote Control Unit

• Panel Mount Enclosure (NGS-9410)

• Dimensions: 96 mm (W) × 48 mm (H) × 103 mm (D)

• Cutout: 84 mm × 37 mm

Ordering Information

Part Number Description

A01150 PCX Pump Control Module — 100–250 V AC

A01151 PCX Pump Control Module — 24 V AC/DC

A01152 PCX Remote Control Module

m-tronix Pty Ltd

info@m-tronix.com.au | ��+61 435 939 513 | �www.m-tronix.com.au
